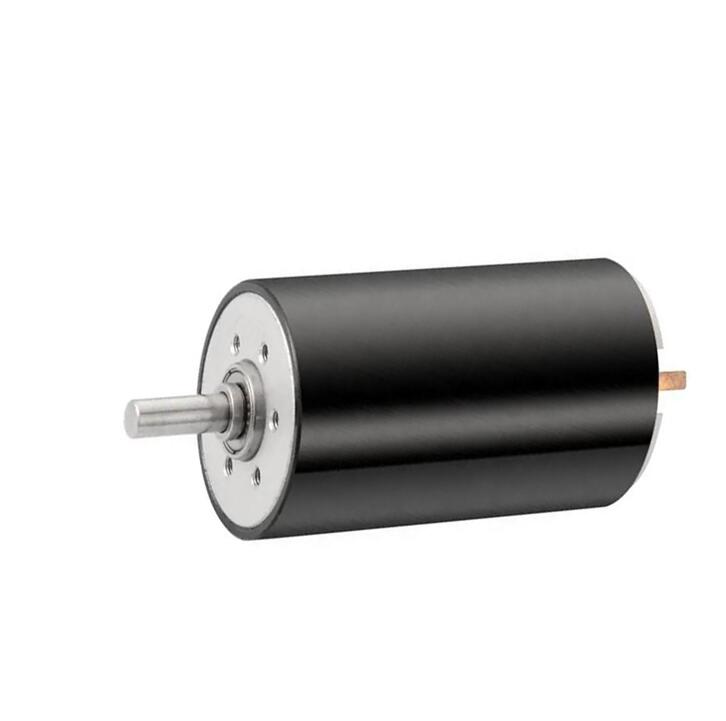

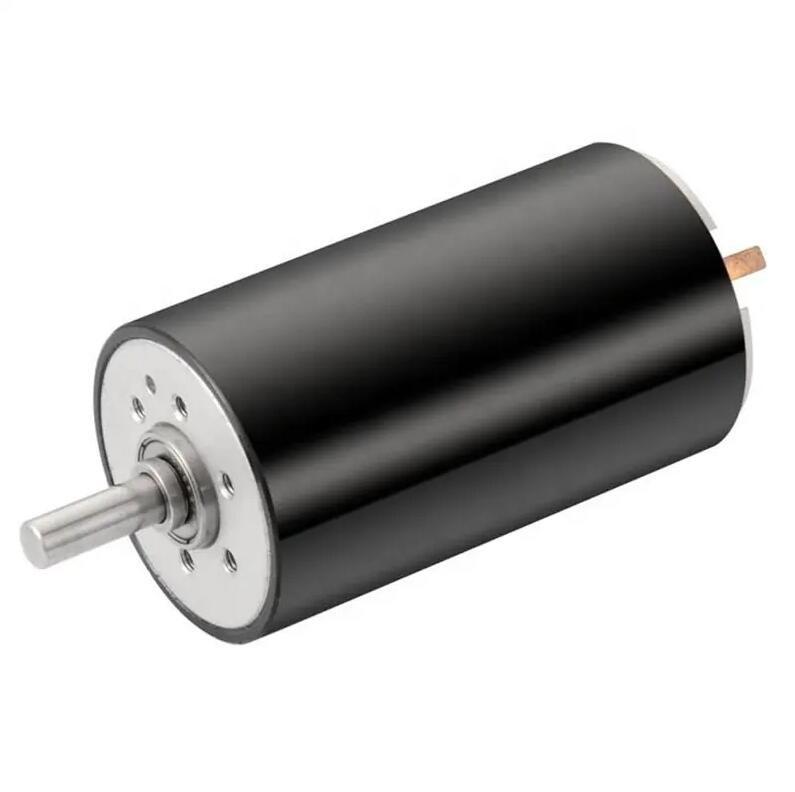

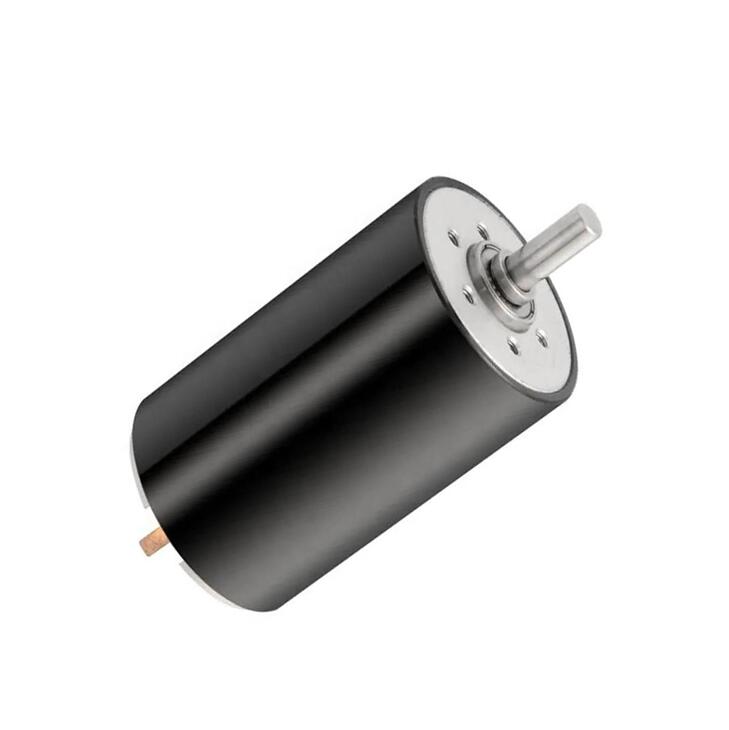

PFM-CL3570

Classification：Coreless Motor

Adopting NdFeb Magnet, coreless winding(Max. temp 155℃),Efficiency up to 89%
No cogging, low audible noise and vibiration level.
Smooth running and easy position control with low inertia

Consult

National Service Hotline：

0755-21000751

Gearbox
Motor Page

Brushed Coreless Motor Specs

Model	Nominal Voltage	No Load		Load at Max Eff			Output Power	Eff.	Stall		*DL1**
Model	V DC	RPM	mA	rpm	g.cm	mA	W	%	A	g.cm	mm
CL3570	12	6140	190	5632	630	3600	37.4	87	41.4	7650	*φ3570**
	24	7800	135	7412	635	2300	49.2	88	43.6	1274
	24	8900	280	8410	742	3600	64.7	85	48	12229
	24	4020	70	3541	810	1500	30.1	85	12.06	6800
	48	6060	33	5629	674	950	39.7	87	12.63	9470
	All aboved specs are limited,Specs can be customized, Inquiry for more details
